KONE TransitMaster™140 Escalator

Escalator details

Description

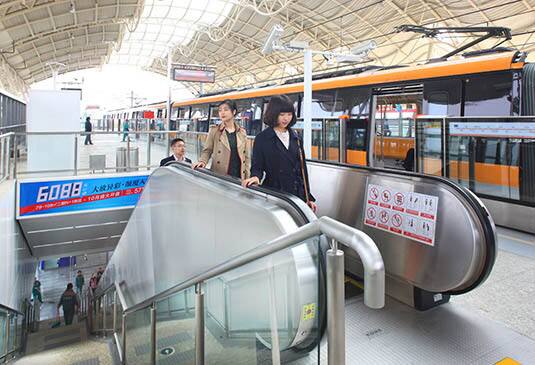

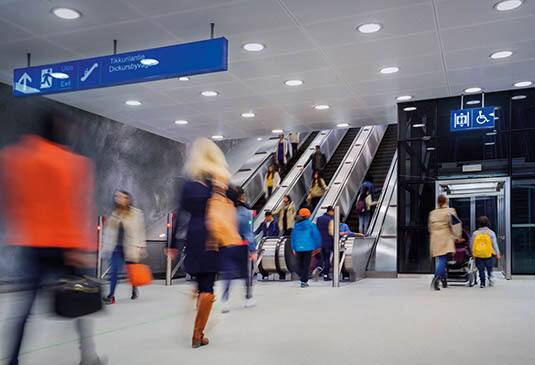

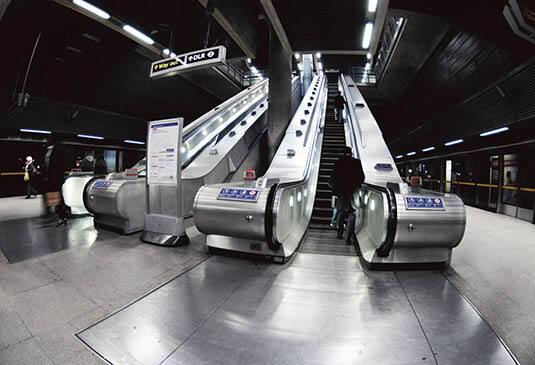

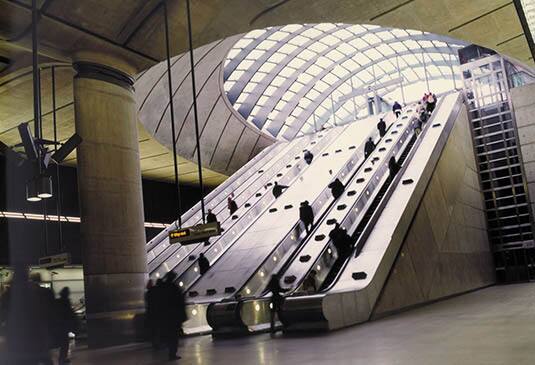

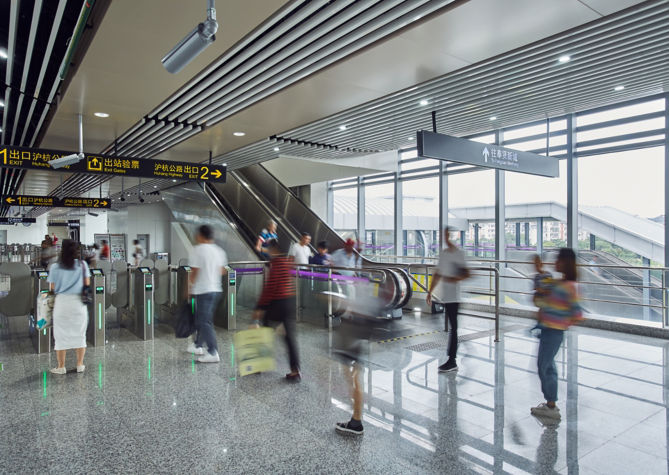

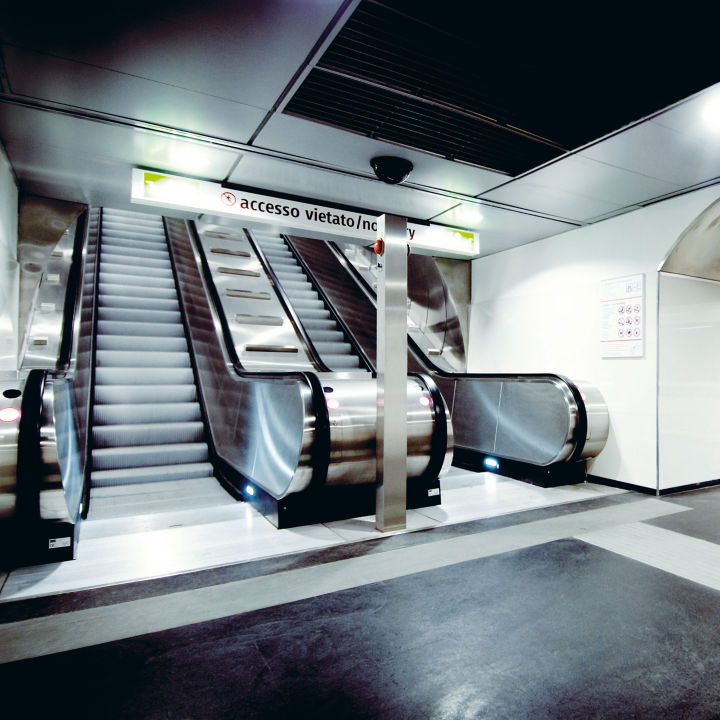

The KONE TransitMaster™ 140 escalator is a highly durable escalator designed for the most demanding public transportation environments, such as metro stations and airports.

Specifications

  • Operational environment: indoor, semi-outdoor, outdoor
  • Speed: 0.5, 0.65, 0.75 m/s
  • Inclination: 27.3–30º
  • Step width: 1000 mm
  • Vertical rise: up to 35 m

Escalator safety

  • Safety is the starting point for every KONE escalator solution. The TransitMaster 140 escalator conforms to all local and international safety codes.
  • We provide standard escalator safety features including comb plate impact device switches and emergency stop buttons for passengers.

Options and highlights

Travelmaster 140

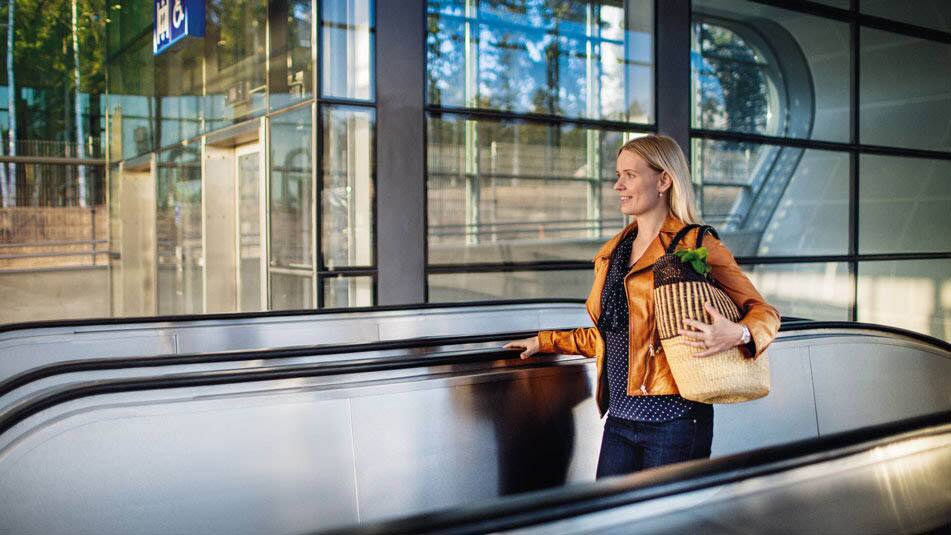

ECO-EFFICIENCY

  • Smart operational modes and inverter optimize energy consumption under different load conditions
  • Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
  • The optional regenerative technology cuts power consumption by recycling energy and feeding it back into the system

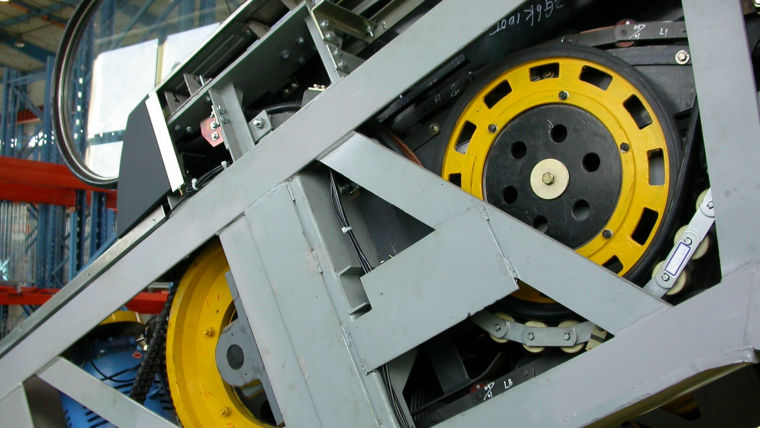

  • The lubrication-free pallet chain saves oil, reduces chain wear, and decreases fire risk
Travelmaster 140

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including

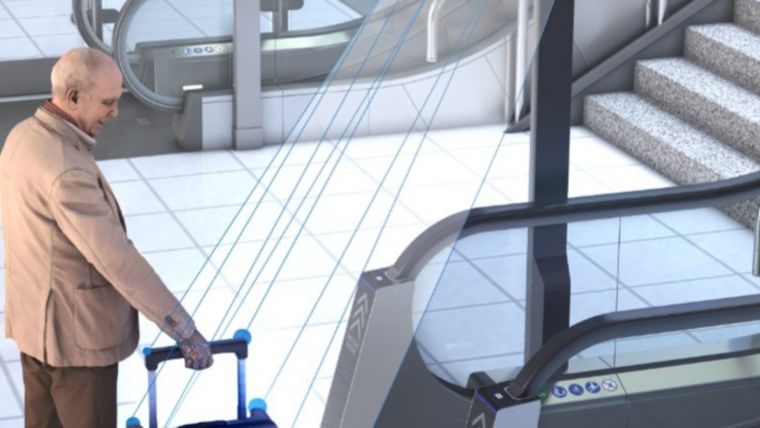

  • Audible alarms and traffic signalization provide clear guidance on escalator travel direction
  • Alarm for travel direction if passengers enter an escalator in the wrong direction
  • New traffic signalization solutions and colored step demarcations for extra visual guidance
  • Four-step horizontal section at the top and bottom of the escalator makes exit and entry smooth and safe

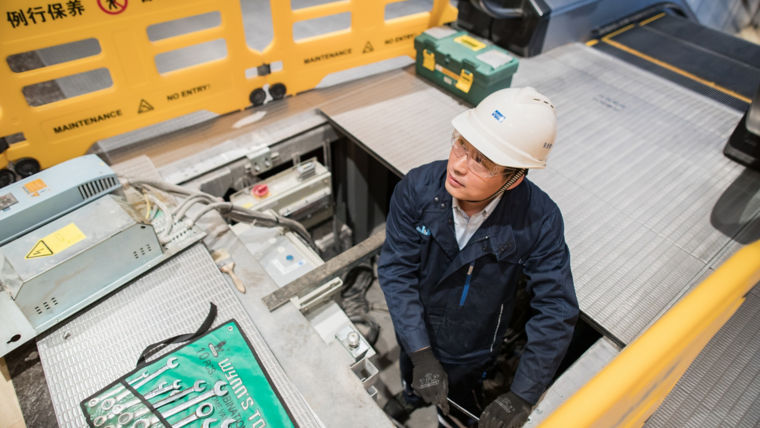

  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems
Travelmaster 120

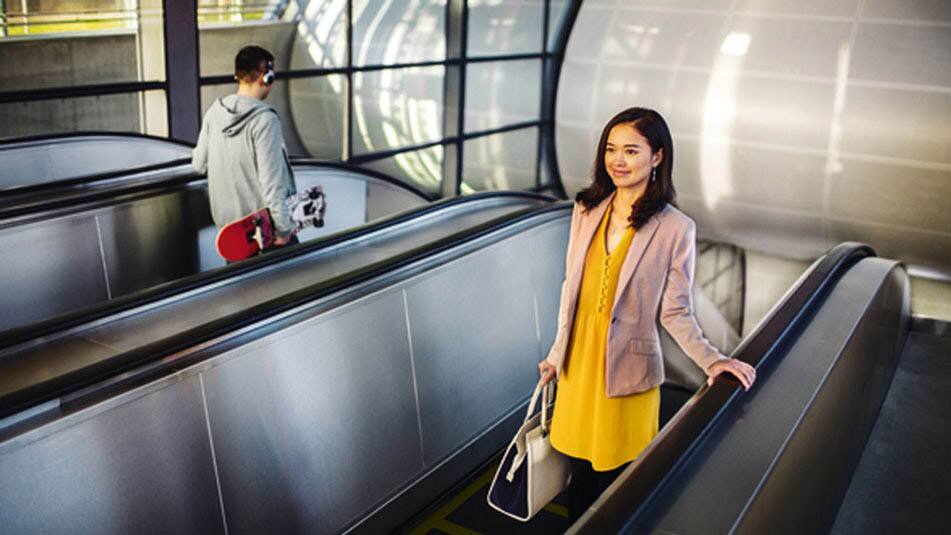

DESIGN

High quality visual design for the best possible user experience

  • Innovative and attractive lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Tools and downloads

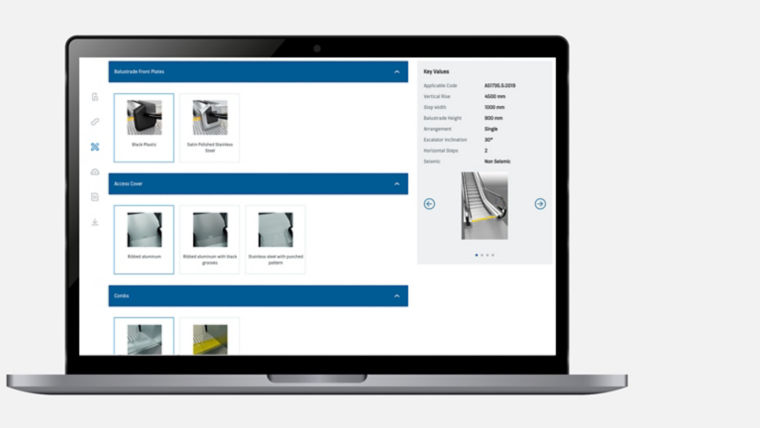

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator Designer for TransitMaster 140

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TransitMaster 140 escalator.

KONE TransitMaster™ 140

This guide details the options and planning dimensions for the KONE TransitMaster 140, which is a heavy-duty escalator for transport hubs such as railroad and metro stations.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

KONE solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

KONE solutions for airports

Our solutions for the unique demands of airport environments help manage the flow of people and goods into and through the airport safely, reliably, and efficiently.

KONE People Flow Intelligence

Our comprehensive, flexible People Flow Intelligence solutions help people move around your building quickly and comfortably while improving security.

Escalator and autowalk solutions

Product name
Description (+type)
Segment
Maximum rise
Speed
Inclination
Duty cycle
Environment
TravelMaster 110
escalatorCommercial, retail, hotel, office
13 m
0.4, 0.5 m/s
30°, 35°
12-16 hours/day
Indoor, outdoor, semi-outdoor
TravelMaster 115
Inclined autowalkCommercial, retail, hotel, office
7 m
0.5 m/s
10°, 12°
12-16 hours/day
Indoor, semi-outdoor
TransitMaster 120
escalatorInfrastructure
15 m
0.4, 0.5, 0.65, 0.75 m/s27.3°, 30°, 35°20-24 hours/dayIndoor, semi-outdoor, outdoor
TransitMaster 140
escalatorInfrastructure
22 m
0.4, 0.5, 0.65, 0.75 m/s30°20-24 hours/dayIndoor, outdoor
TransitMaster 165
horizontal autowalkInfrastructure
15-60 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
TransitMaster 185
horizontal autowalkInfrastructure
15-100 m
0.4, 0.5, 0.65, 0.75 m/s
0-6°
20-24 hours/day
Indoor, semi-outdoor
KONE InnoTrack
horizontal autowalk
Infrastructure
15-60 m
0.5, 0.65 m/s

20-24 hours/day
Indoor
